WinFast WS650

Mini-Tower/2 GPU/1 CPU/8 DIMM slot

WinFast WS650 Mini AI Workstation

Compact Form with Server-grade Performance
Support for Dual NVIDIA RTX PRO™ 6000 Blackwell Max-Q GPUs

Experience the integrated power of dual NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition GPUs—seamlessly combined in a compact design that fits effortlessly into any workspace, maximizing both space efficiency and productivity.

Optimized for :

 Office desks, Lab workstations

 Space-constrained environments

 Sites without dedicated server rooms

Ideal For :

 Data science and analytics

 Agentic AI development

 Generative AI workloads

 Professional visualization

Key Features

  • 5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 ( Socket E ) supported, CPU TDP supports Up to 350W TDP
  • Intel C741® Chipset
  • Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
  • 2 x PCIe 5.0 x 16
  • Up to 2 x NVIDIA RTX PRO 6000 Blackwell Max-Q
  • Dual LAN with 1GbE, 1x Dedicated IPMI
  • 80Plus Titanium 1650W ATX3.1

5th Gen Intel® Xeon® Scalable processors are...

Intel® Xeon® 6900 series
128 Powerful Cores
Optimized for cloud, enterprise, HPC, network, security and IoT workloads.
DDR5
Improve computing performance with higher memory bandwidth.
4th Gen Intel Xeon Scalable processors offer up to 5,600 MT/s (1 DPC) or 4,400 MT/s (2 DPC) with DDR5
PCI Express 5.0
Unlock new I/O speeds with opportunities to enable the highest possible throughput between the CPU and connected devices, Up to 80 lanes of PCIe 5.0 - ideal for fast networking, high-bandwidth accelerators and high-performance storage devices.
AMX
Intel® Advanced Matrix Extensions (Intel® AMX) Accelerates deep learning (DL) inference and training workloads, such as natural language processing (NLP), recommendation systems, and image recognition.

PCIe® 5.0 doubles the data transfer speed over the previous generation

PCIe 5.0 delivers double the I/O performance over PCIe 4.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.

Hardware + Software Integration

The Best Cost-Performance Choice for AI Workstation

Server Grade Performance

Supports up to 2× RTX PRO 6000 Max-Q Workstation Edition GPUs, provide 192GB of GPU memory in a single workstation

Instant AI Project Launch

Utilizing LEADTEK Software suites enhances efficiency in bringing AI projects to fruition, facilitating faster production or deployment timelines and enabling swift adaptation to remain competitive.

Optional software

Processor

CPU
  • Socket E (LGA4677)
  • Intel® 5th/4th Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 350W

System Memory

Memory Capacity
  • 8 DIMM slots
  • Memory Capacity : Up to 2TB
Memory Type
  • Up to 5600MT/s (1DPC) ECC DDR5 RDIMM

On-Board Devices

Chipset
  • Intel® C741
SATA
  • 2 SATA3 (6 Gbps) ports for 2 fixed 2.5" drive bay
IPMI
  • ASPEED AST2600 BMC
Network
  • 2 RJ45 1 Gigabit Ethernet LAN port
  • 1 RJ45 1 Gigabit Dedicated IPMI LAN port

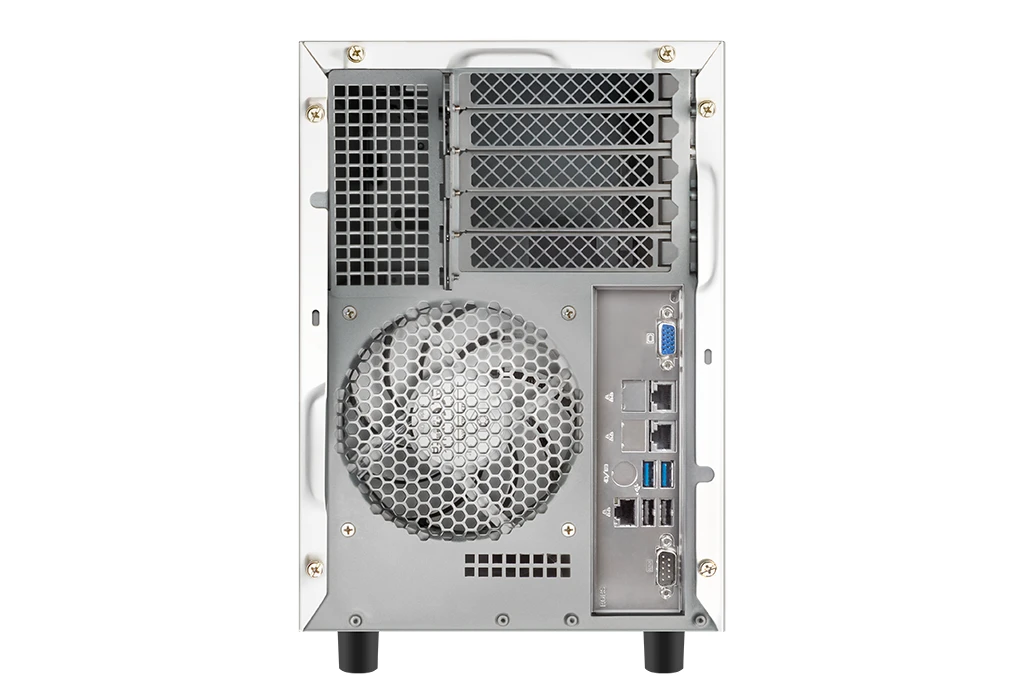

Input / Output

LAN
  • 2 RJ45 1 Gigabit Ethernet LAN port
  • 1 RJ45 1 Gigabit Dedicated IPMI LAN port
USB
  • Front : 2x USB 3.2 Gen1
  • Rear : 2x USB 3.2 Gen1, 2x USB 2.0 Gen1
Serial Port
  • 1 COM Port
Video
  • 1 VGA port

Form Factor

  • Mini-Tower

Drive Bays / Storage

  • 2 fixed 2.5" drive bay
  • 2 M.2 (M-key, 2280/22110)

Expansion Slots

PCI-Express
  • 2 PCI-E 5.0 x16 slots
  • 1 PCI-E 5.0 x8 slots
M.2
  • M.2 Interface : PCI-E 4.0 x 2
  • Form Factor : 2280/22110, M-Key

System Cooling

Fans
  • 1x 12cm rear exhaust fan
  • 1x 12cm Top cooling fan

Power Supply

  • 1650W 80 PLUS Titanium ATX 3.1 Power Supply
  • 100-240Vac / 18A Max / 50-60Hz

OS Compatibility

  • Windows 10/11
  • Ubuntu 20.04/22.04

Operating Environment

RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

Dimensions

Height
  • 308mm
Width
  • 202mm
Depth
  • 466mm

  • Revised web page of product spec and information won't be noticed, product colorbox printing shows the actual information of the product.
  • Above product spec is for reference only, actual spec rely on the real product and Leadtek keeps the right to alter. Each sales region will impacts the product difference, please contact your supplier for making sure the actual product information.
  • The adapter, cable and software listed on the web page are for reference only and Leadtek keeps the right to alter, revised information won't be noticed.
  • Above brand name and product name are trademark of each corresponding company.
