• Add to Compare

WinFast WS752

  • Entry-Level Workstation
  • Designed for AI/Deep learning/CAD and 3D Modeling
  • Support 1 NVIDIA triple-width or double-width GPUs

Optimized for

  • AI / Deep Learning
  • 2D/3D and CAD Applications
  • 3D Simulation and Rendering
  • Digital Content Creation
  • 1 GPU support

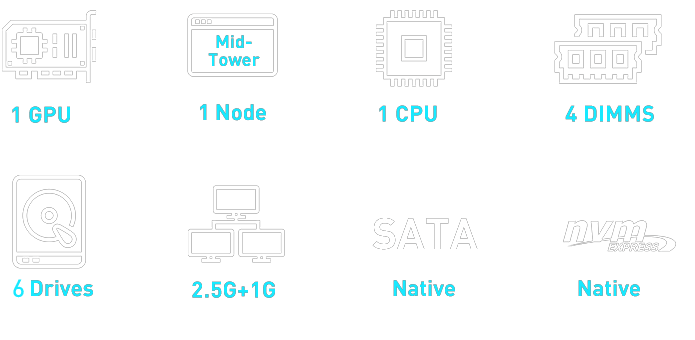

Key Features


  • Intel® Core™ Ultra 9/7/5 (Series 2) processors, up to 125W TDP
  • 4 DIMM slots, up to 192GB 5600MT/s ECC DDR5 UDIMM
  • 2x PCI-E 5.0 x16 slots (16/NA or 8/8)
    1 PCIe 4.0 x4 (in x4) FHHL slot
    1 M.2 PCIe 5.0 x4 NVMe slot
    1 M.2 PCIe 4.0 x4 NVMe slot
  • Support  1 triple-width or 1 double-width GPU
  • 1 RJ45 1GbE with Intel® I219-LM
    1 RJ45 2.5GbE with Intel® I226-LM
  • 2 internal fixed 3.5"/2.5" SATA drive bays
    4 internal fixed 2.5" NVMe*/SATA drive bays
  • 1x 1000W Gold Level (90%) power supply

Intel® Core™ Ultra 9/7/5 (Series 2) processors for Workstation Features at a Glance

Performance Hybrid Architecture

Performance hybrid architecture, combining Performance-cores (P-cores) and Efficient-cores (E-Cores) to deliver balanced single-thread and multi-threaded real-world performance.

Intel® Thread Director

Optimizes workloads by helping the OS scheduler intelligently distribute workloads to the optimal cores.

PCIe 5.0 up to 16 Lanes

Offers readiness for up to 32 GT/s for fast access to peripheral devices and networking with up to 16 PCI Express 5.0 lanes.

PCIe 4.0 up to 4 Lanes

Offers up to 16 GT/s for fast access to peripheral devices and networking with up to 4 PCI Express 4.0 lanes.

Up to DDR5 5600 MT/s

This industry first memory technology supports fast frequencies and high bandwidth and throughput leading to enhanced workflow and productivity.

PCIe® 5.0 doubles the data transfer speed over the previous generation

PCIe 5.0 delivers double the I/O performance over PCIe 4.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.

SATA vs NVMe

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC)
chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

Optional software

Processor

CPU
  • Single Socket V1 (LGA-1851)
  • Intel® Core™ Ultra 9/7/5 (Series 2) processors
  • Support CPU up to 125W TDP
  • Up to 24 cores (8P+16E)

System Memory

Memory Capacity
  • 4 DIMM slots
  • Memory Capacity: Up to 192GB
Memory Type 5600MT/s ECC DDR5 UDIMM

On-Board Devices

Chipset Intel® W880
SATA 8 SATA3 (6 Gbps) ports, RAID 0/1/5/10 support
Network Controllers
  • 1 RJ45 1GbE with Intel® I219-LM
  • 1 RJ45 2.5GbE with Intel® I226-LM

Input / Output

SATA 8 SATA3 (6Gbps) ports
NVMe 2 NVMe support with M.2 Socket
LAN 1 RJ45 GbE and 1 RJ45 2.5GbE LAN ports
USB
  • Front: 2x USB 3.2 Gen1 Type-A ports
    1x USB 3.2 Gen2 Type-C port
  • Rear: 3x USB 3.2 Gen2 Type-A ports
    1x USB 3.2 Gen2 Type-C port
Video
  • 1 HDMI 2.1 port
  • 1 DisplayPort 2.1 port
Audio 7.1 HD Audio with optical S/PDIF

Form Factor

Mid-Tower

Dimensions and Weight

Height 17.72" (450 mm)
Width 8.07" (205mm)
Depth 18.5" (470mm)
Weight Gross Weight: 19.2 lbs (8.7 kg)

Drive Bays / Storage

  • 2 internal fixed 3.5"/2.5" SATA drive bays
  • 4 internal fixed 2.5" NVMe*/SATA drive bays
  • 2 M.2 (M-key)

Expansion Slots

PCI-Express
  • 2 PCIe 5.0 x8 (in x16) FHFL slots
  • 1 PCIe 4.0 x4 (in x4) FHHL slot
M.2
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 22110(default)/2280)
  • 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default))

System Cooling

Fans
  • 4x 120mm Fan(s)

Power Supply

1x 1000W Gold Level (90%) power supply
AC Input 1000W: 100-240Vac / 47-63Hz

OS Compatibility

  • Windows 10/11
  • RHEL 9.5
  • Ubuntu 24.04

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
